Network controller

1.Model-LANs-SC, AX100/200 controller

2. Hardware performance-memory 2G~16G; multiple interfaces, powerful network functions, modular and integrated combination; i5, i7 processors, powerful processing capabilities, embedded WEB browser, more convenient access

3. Features-Hardware: 2 BACnet MS/TP communication ports, 2 Ethernet ports (BACnet IP or BACnet Ethernet), 1 Service port;-Support communication protocols: BACnet MS/TP, BACnet IP, BACnet Ethernet, BACnet PTP, MODBUS-RTU, MODBUS-TCP/IP

Ordering model: LANs-AX100/200

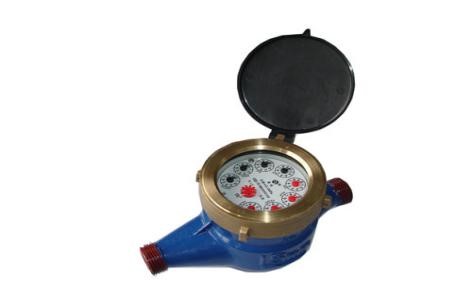

Smart water meter

The remote water meter is composed of an ordinary mechanical water meter plus an electronic acquisition and signaling module. The electronic module completes signal acquisition, data processing, storage and uploads the data through the communication line. The meter body adopts an integrated design. It can record and save the user's water consumption in real time, or directly read the current cumulative number. Each water meter has a unique code. When the smart water meter receives the meter reading instruction, the water meter data can be uploaded immediately To the management system.

Features

Directly read the window value of the base meter number, and output the cumulative flow data signal of the water meter, and there is absolutely no drawbacks such as the measurement error of the pulse signal water meter;

Caliber range: DN15-500;

The sensor is isolated from the counting gear without mechanical contact;

Communication interface: RS485, M-BUS, miniBUS and other bus modes;

Communication protocol: CJ/T188, DL/T645, standard Modbus and other protocols;

Other functions: remote valve control function;

Shell material: made of high-quality corrosion-resistant cast iron, high-quality brass or stainless steel;

Ordering model: DN15-500

Smart meter

Single-phase electric energy meter, applied to active power measurement: high measurement accuracy, accurate measurement, modularization, small size, and can be easily installed in various terminal distribution boxes. Rail type installation, bottom wiring, perfect match with miniature circuit breaker. The intuitive and easy-to-read mechanical display reduces the risk of data loss due to accidental power failure. No external power supply is required. Wide operating temperature range

The intelligent three-phase ammeter can directly replace conventional power transmitters and measuring instruments. As an advanced intelligent and digital front-end acquisition component, the meter adopts AC sampling technology and can measure the three-phase current parameters in the power grid. The magnification can be set through the panel membrane switch, with RS485 communication, alarm output, and switch input/output. And other functions.

Energy meter, flow meter

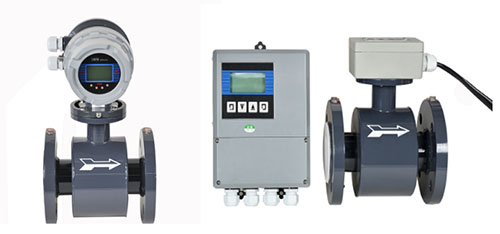

The electromagnetic flowmeter is an instrument that measures the volume flow of conductive liquids based on the working principle of Faraday's law of electromagnetic induction. It is a product of the combination of fluid mechanics and electromagnetics. As a high-precision instrument for flow measurement, its applications are in metallurgy, water supply, drainage, petroleum, chemical, food, medical, environmental protection, agricultural irrigation and other sectors.

Features

1. There are no moving parts in the measuring tube, which is convenient for maintenance and management, so the service life of the sensor is long; there is no blocking part, so there is no pressure loss

2. The sensor's magnetic field distribution is more uniform, the signal is stronger, and it has stronger adaptability to small flow, the lower limit can reach 0.3m/s

3. The surface of the pipe body is sprayed with zinc, which can provide long-term protection even in harsh environments, and the surface has superior anti-corrosion performance

4. The measurement is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity

5. There are no flow blocking parts in the measuring pipe, no pressure loss, and low requirements for straight pipe sections. Unique adaptability to slurry measurement

6. The measurement result has nothing to do with the fluid pressure, temperature, density, viscosity and other physical parameters

7. High-definition backlit LCD display, full Chinese menu operation, easy to use, simple to operate, easy to learn and understand

8. With self-inspection and self-diagnosis, self-diagnosis and alarm functions.
