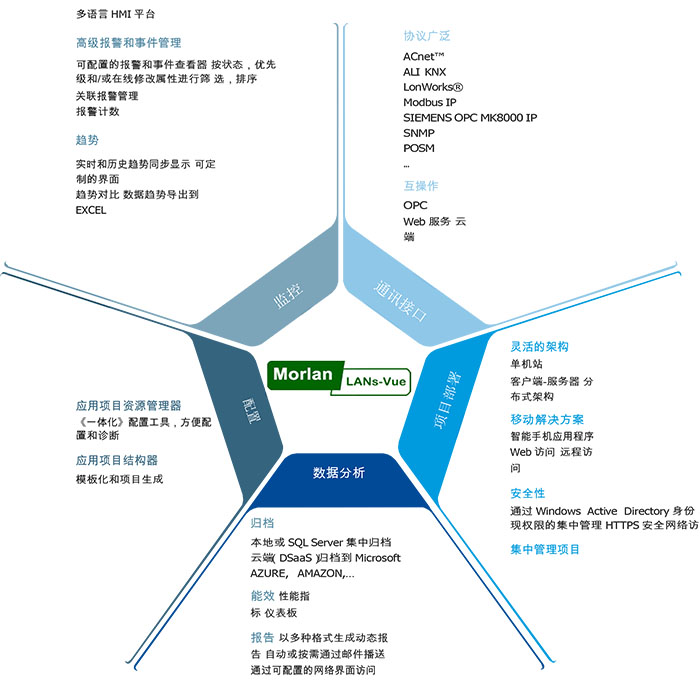

Management software
We are a leading provider of building systems and services in China, providing building equipment monitoring systems for commercial buildings, education, government, offices, industry and global retail. And provide an open, scalable software platform, and provide complete man-machine control and connection, to achieve rich built-in drivers, such as IEC61850, IEC 61870, DNP3, Modbus, TCP/IP, OPC, including rich graphics interfaces , Alarm and event log recording system and report system. Our solutions in the field of automation and information technology include: production execution systems (MES systems), production data monitoring systems (SCADA systems), industrial building management systems and environmental monitoring systems (BMS systems and EMS systems), process Process control system, providing a full range of technical services from design, supply, construction and commissioning, FAT and SAT testing, etc., for the Kejin laboratory project, providing an overall solution for the comprehensive management system of experimental environment information for the electromechanical equipment integrated control system.
Ordering model: LANs-VUE
Network controller
1. Model-LANs-SC, AX100/200 controller
2. Hardware performance-memory 2G~16G; multiple interfaces, powerful network functions, modular and integrated combination; i5, i7 processors, powerful processing capabilities, embedded WEB browser, more convenient access
3. Features-Hardware: 2 BACnet MS/TP communication ports, 2 Ethernet ports (BACnet IP or BACnet Ethernet), 1 Service port;-Support communication protocols: BACnet MS/TP, BACnet IP, BACnet Ethernet, BACnet PTP, MODBUS-RTU, MODBUS-TCP/IP
Ordering model: LANs-AX100/200
1. The small network controller has BACnet routing function, adaptive 10M/100M, BACnetIP interface.
2. Unitary Controller Universal Controller 8UI, 9DI, 4AO, 4DO, independent free programming function
3. The direct digital controller adopts dual CPU design, CPU1Cortex A8 3352, 600MHz, ARM-M4 CPU 32-bit CPU, 183MHz. MSTP communication protocol 32-bit CPU, BACnet-MSTP network protocol communication network, supports stand-alone operation, can also be used as a network controller, each bus can be connected to 16 controllers. Use WEB architecture software to configure the device to achieve online programming and configuration functions
Ordering model: LANs-MC
Universal controller
1. Model-PUB6648 controller, Unitary Controller 6UI, 6DI, 4AO, 8DO, independent free programming function
2. Processing performance: use ARM-M4 CPU 32-bit CPU, 183MHz network protocol: use BACnetMS/TP network protocol communication network, the rate can be defined. Network connection: Support stand-alone operation, using BACnetMS/TP network communication, each BACnetMS/TP bus can be connected to 64 controllers. Programming mode: Web framework software configuration equipment, realize online programming and configuration functions. BACnet advanced application controller meets different needs. Built-in area control function module and schedule can be freely programmed
Ordering model: PUB6648

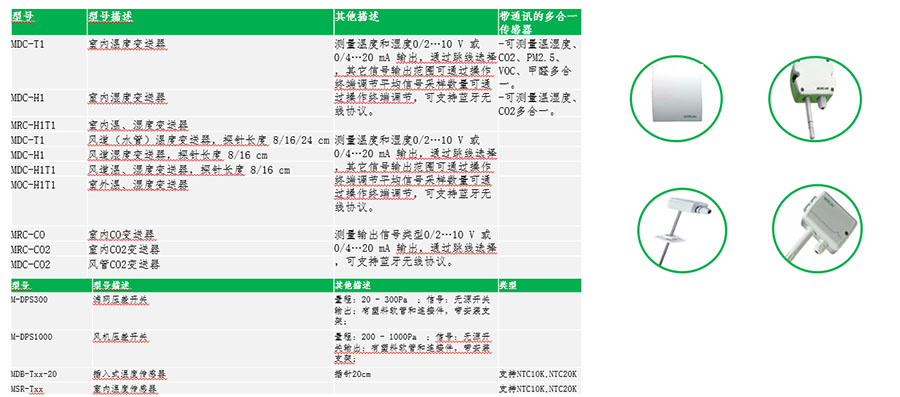

Field sensor

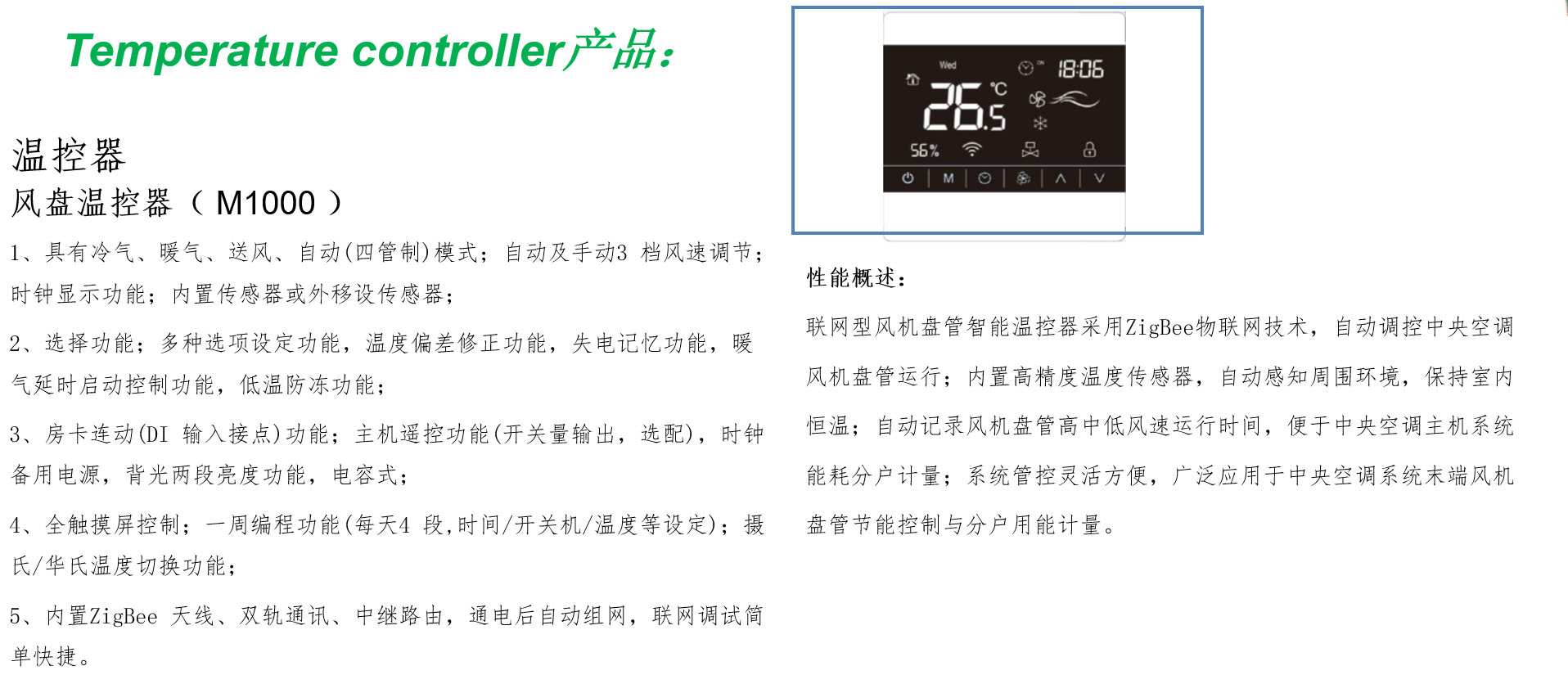

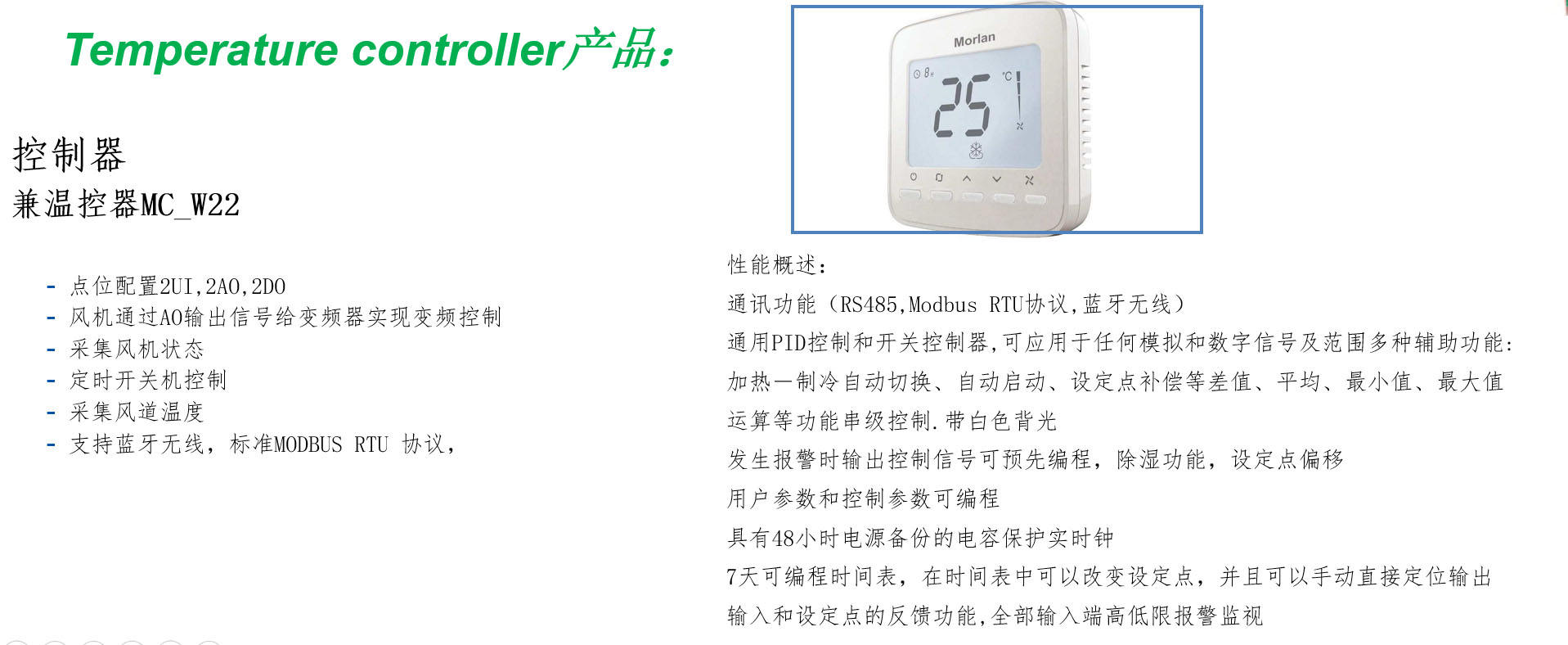

Thermostat (networked)
